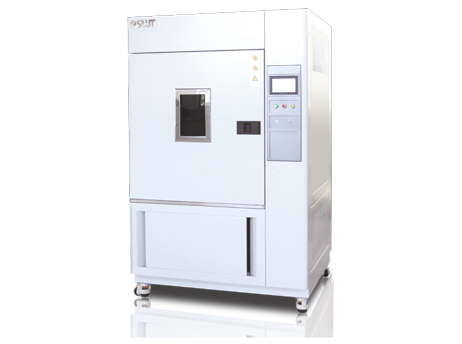

氙灯耐气候试验设备采用能模拟全阳光光谱的氙弧灯来再现不同环境下存在的破坏性光波。本设备可以为科研、产品开发和质量控制提供相应的环境模拟和加速试验
除了进行光降解测试以外,氙灯耐气候试验设备还可以通过增加湿气和水喷淋选件模拟室外湿气对材料的破坏影响

Xenon - resistant climate test equipment USES xenon arc lamps that mimic the full spectrum of sunlight to reproduce the destructive light waves in different environments. The equipment can provide corresponding environmental simulation and accelerated test for scientific research, product development and quality control.
In addition to the photodegradation test, the xenon test equipment can also be used to simulate the effects of outdoor moisture on the material by adding moisture and water spray.



工作室尺寸(mm)Test Space Dimensions 1000×1000×1000(W×H×D)(mm)
外形尺寸 Overall Dimensions 1520×1485×2120(D×W×H)(mm)
样品夹数量 Sample Holder Number 40 pieces
样品夹尺寸 Sample Holder Size 70W*150H*15D mm
温度范围 Temp. Range RT+10℃~+85℃
温度波动度 Temp.  Fluctuation ≤±0.5℃
温度均匀度 Temp. Uniformity ≤2.0℃
湿度范围 Humidity Range 45%~98%RH
湿度误差 Humidity Diviation +2/-3 %RH
辐照强度 Irradiation Intensity 1120W/m2±10%
氙灯功率 Lamp Power 1800W/4500W
波长范围 Wavelength Region 280~800nm
样架旋转速度 Sample Frame Rotary Speed 1~5/min(可调adjust)
冷却方式 Type of Cooling 水冷 Water-cooled
额定电压 Nominal Voltage AC380V ±10%,50Hz
功率 Power 8(kW)

备注
1.设备性能在环境温度+25℃,相对湿度65%RH下,无负载所测。The performance vulues refer to environmental +25℃ 65%RH,no loading.
2.外形尺寸未包含局部突出部分。The ledge is not included in the overall dimensions.
